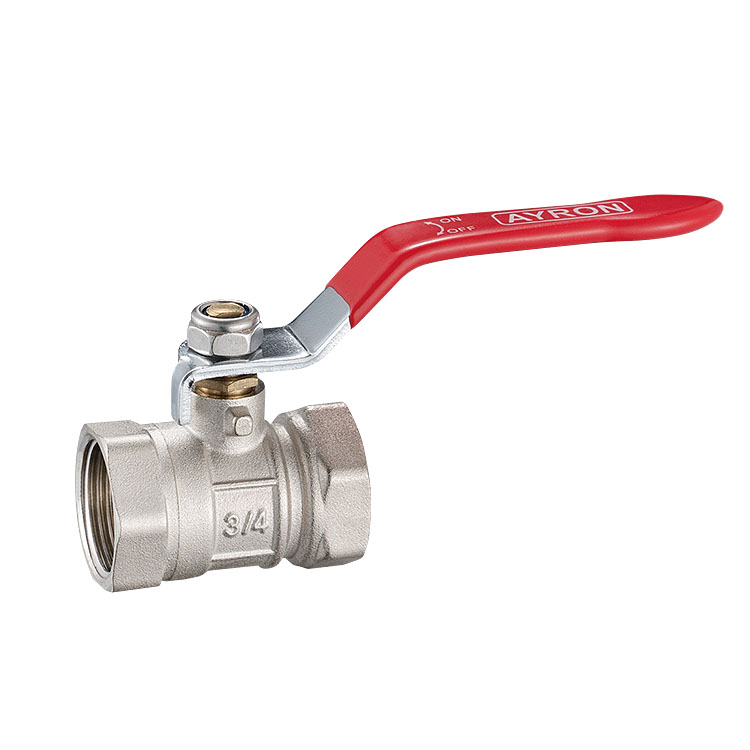

Product Description
Normal bore,light type FF,PN 25
surface nickel plated,with red steel handle
working temperature: -20℃ to 130℃
 |
|
|
Key Specifications
| SIZE | DN | A | B | H | L |  |
 |
| 1/4” | 8 | 10 | 43 | 41 | 102 | 20 | 200 |
| 3/8” | 8 | 10 | 43 | 41 | 102 | 20 | 200 |
| 1/2” | 13.5 | 11.5 | 47 | 50 | 122 | 10 | 120 |
| 3/4” | 18 | 12.5 | 55 | 53 | 125 | 10 | 100 |
| 1” | 23 | 14 | 62 | 61 | 136 | 10 | 60 |
| 1-1/4” | 30 | 15.5 | 74 | 78 | 172 | 4 | 36 |
| 1-1/2” | 35 | 16 | 82 | 82 | 178 | 4 | 32 |
| 2” | 47 | 18 | 100 | 95 | 210 | 2 | 18 |
| 2-1/2” | 58 | 21 | 123 | 110 | 310 | 2 | 8 |
| 3” | 70 | 23 | 136 | 127 | 320 | 2 | 6 |
| 4” | 90 | 24 | 163 | 140 | 330 | 2 | 4 |
